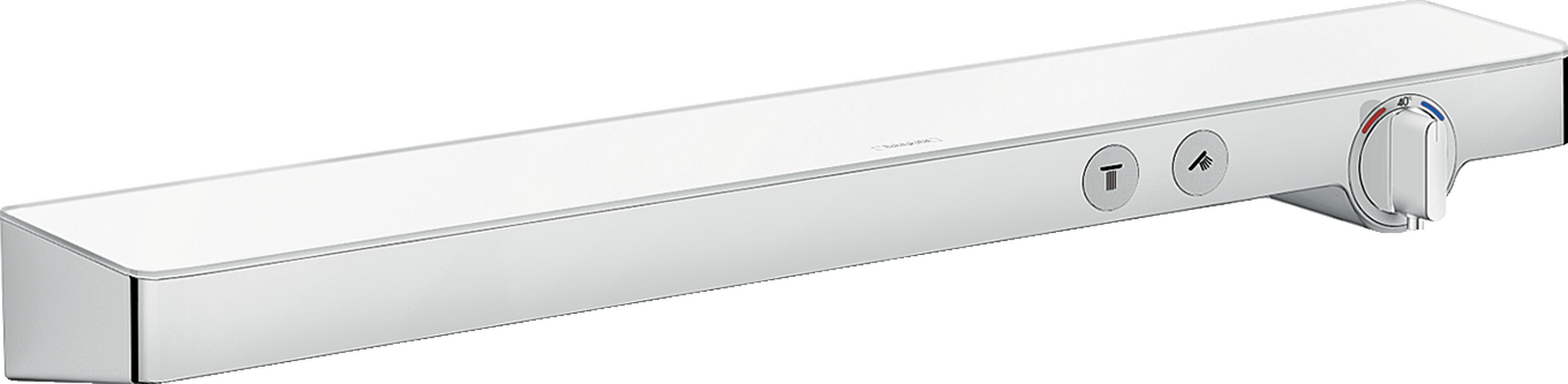

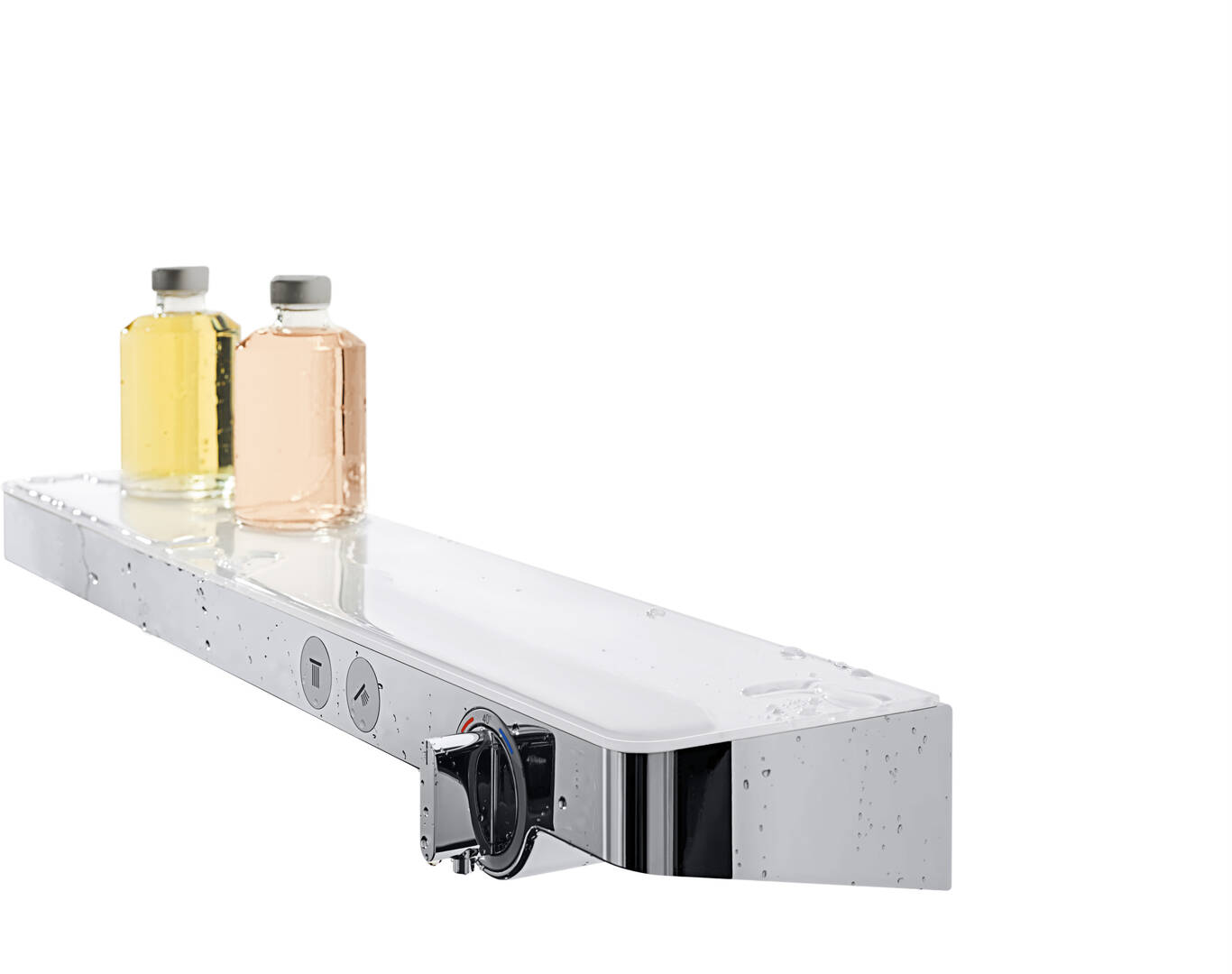

ShowerTablet Select Thermostat

Article features

• 2 outlets
• simultaneous utilization of 2 outlets
• Select push-button on/off control for 2 outlets
• CoolContact thermostat: Prevents the housing from heating up, making showering even safer
• Start/stop valve to operate the outlets, thermostatic mixer cartridge
• exposed design allows easy installation, all working parts are outside of the wall
• maximum flow rate at 3 bar: 28 l/min
• flow rate upper outlet 28 l/min at 3 bar
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• control of an external shower or bath tub filler via concealed connection G ½ possible
• Safety stop at 40 °C
• temperature limitation adjustable
• with isolated water conduction
• non-return valve
• shelf made of safety glass
• surface shelf: white glass
• material handles: metal
• centre distance: 150 mm
• connection type: adjustable connection, G ½
• dirt filter included
• thermostatic mixer is delivered with buttons Rain large and hand shower
• cannot be connected with a standard fixing plate
• if running with a pump, please specify a universal (negative head) pump
