Ecostat Select Thermostatic bath mixer for exposed installation
Product code 13141000
RRP incl. VAT
Please try again.
Please try again.
Innovative technologies
Five-year manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
Similar products
Article features
- spout 193 mm long
- designed to run 2 outlets
- exposed design allows easy installation, all working parts are outside of the wall
- Centre distance: 150 mm ± 12 mm
- Flow rate for bath spout (at 3 bar): 20 l/min
- Flow rate of hand shower (at 3 bar): 12 l/min
- thermostat cartridge, ceramic valve 180°
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- safety stop at 40°C
- Maximum temperature can be adjusted on installation
- with isolated water conduction
- Intrinsically safe against backflow
- with silencer
- Material handles: metal
- made of safety glass
- in case of installation on existing G ¾ connections, adaptor no. 02026000 must be used
- surface of the shelf at colour variant -000 = mirror glass, at colour variant -400 = white glass
- dirt filter included
- cannot be connected with a standard fixing plate
- WRAS 1807026
Certificates
WRAS (Water Regulations Advisory Scheme)
The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.
TMV3 - A thermostatic mixing valve with enhanced thermal performance, complying with NHS Estates requirements.
The TMV3 Scheme is the third party valve accreditation programme administered by Buildcert. It is an independent test to check if the submitted valves are suitable for use in high risk commercial healthcare applications in the UK.
Spare parts for build year 06/11
View older models in the spare parts shop
| Item no. | DescriptionProduct code |
|---|
| a | brake disc92832000 |
| c | ball s-unions with escutcheon98293000 |
| d | diverter fixing device97211000 |
| b | adapter for ball S - union02026000 |
| e | Grease90920000 |
| 1 | handle for thermostat95770000 |
| 2 | safety set95771000 |
| 3 | handle fixing set92130000 |
| 4 | nut98913000 |
| 5 | thermostat cartridge98282000 |
| 6 | cartridge for exchanged connections92373000 |
| 7 | shut off unit94149000 |
| 8 | spout cpl.92169000 |
| 9 | aerator M24x1 (30 l/min)96512000 |
| 10 | diverter knob97981000 |
| 11 | sleeve97979000 |
| 12 | selector97978000 |
| 13 | hollow set screw M6x16 including o-ring 29x398372000 |
| 14 | escutcheon92694000 |
| 15 | seal97530000 |
| 16 | non return valve (pressure-resistant up to 2 MPa)95773000 |
| 17 | O-ring 17x298199000 |

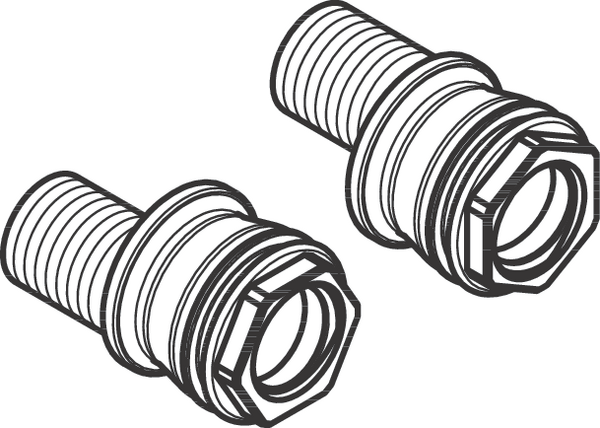

| 18 | set of S-unions95772000 |
| 19 | noise reduction96429000 |
| 20 | O-ring 29x398371000 |
