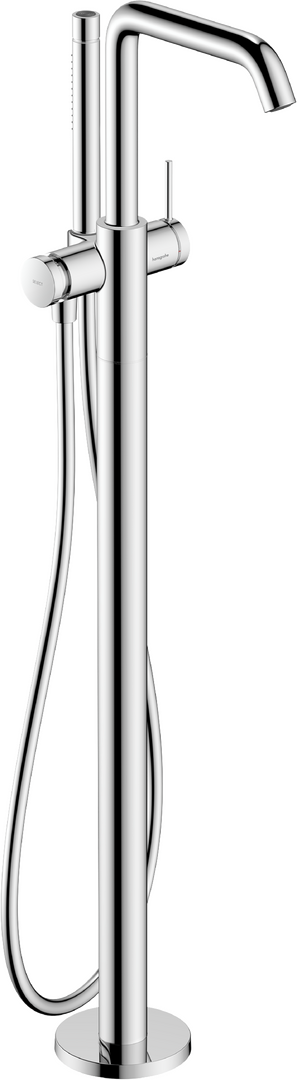

Product code 73440000
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
| Item no. | DescriptionProduct code |
|---|
| b | extension set 60 mm93882000 |
| a | concealed item10452180 |
| 1 | aerator M24x1 (38 l/min)93965000 |
| 2 | service tool95661000 |
| 3 | handle87120000 |
| 4 | screw cover93735460 |
| 5 | escutcheon87121000 |
| 6 | nut93995000 |
| 7 | O-ring 35x1,592114000 |
| 8 | cartridge, assy93895000 |
| 9 | handshower28532000 |
| 10 | filter packing94246000 |
| 11 | guide92858000 |
| 12 | pushbutton94369000 |
| 13 | hollow set screw M4x697767000 |
| 14 | nut94367000 |
| 15 | O-ring 17x1,598137000 |
| 16 | selector assy94368000 |
| 17 | O-ring 12x1,598430000 |
| 18 | O-ring 15x1,592118000 |
| 20 | connecting thread95392000 |
| 21 | O-ring 14x298129000 |
| 22 | seal98058000 |
| 23 | shower hose Isiflex'B 1,25 m28272000 |
| 24 | escutcheon94038000 |
| 25 | hexagon socket screw M10x3597670000 |
| 26 | O-ring 29x398371000 |
| 27 | O-ring 44x2,598162000 |
| 28 | O-ring 7x298419000 |
