uBox universal Base set for finish sets for vertical installation

Base set for finish sets for vertical installation Base set for finish sets for vertical installation

Product code 01002180

GBP  216.00 RRP incl. VAT
Find a retailer
Add to notepad Product noted Product saved for 30 daysSee notepad The product could not be saved.
Please try again.
Compare products Product added Product saved for 30 daysTo the product comparison The product could not be saved.
Please try again.
Find a retailer

Innovative technologies

Easy to clean siphon

Easy to clean siphon

Modern odor trap with a high drainage capacity can be removed for cleaning, even after it has been securely installed in the flooring. Any remaining dirt or hair is easy to remove under running water.
For maximum security

For maximum security

Avoid water damage with a pre-assembled sealing membrane. It is 100% waterproof. This prevents any shower water from getting through the wall or floor for a reliable and safe showering experience.

Easy to clean siphon

Easy to clean siphon

Easy to clean siphon

Modern odor trap with a high drainage capacity can be removed for cleaning, even after it has been securely installed in the flooring. Any remaining dirt or hair is easy to remove under running water.

For maximum security

For maximum security

For maximum security

Avoid water damage with a pre-assembled sealing membrane. It is 100% waterproof. This prevents any shower water from getting through the wall or floor for a reliable and safe showering experience.
Our name is your guarantee

Five-year manufacturer’s guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.

Alternative products

Similar products

Base set for finish sets for flat installation

uBox universal Base set for finish sets for flat installation

GBP  216.00
Base set for finish sets for standard installation

uBox universal Base set for finish sets for standard installation

GBP  216.00
Complete set for flat installation - 600 for shower drains finish sets

uBox universal Complete set for flat installation - 600 for shower drains finish sets

GBP  505.00
Complete set for flat installation - 700 for shower drains finish sets

uBox universal Complete set for flat installation - 700 for shower drains finish sets

GBP  505.00
Complete set for flat installation - 800 for shower drains finish sets

uBox universal Complete set for flat installation - 800 for shower drains finish sets

GBP  515.00
Complete set for flat installation - 900 for shower drains finish sets

uBox universal Complete set for flat installation - 900 for shower drains finish sets

GBP  520.00
Complete set for flat installation - 1000 for shower drains finish sets

uBox universal Complete set for flat installation - 1000 for shower drains finish sets

GBP  530.00
Complete set for flat installation - 1200 for shower drains finish sets

uBox universal Complete set for flat installation - 1200 for shower drains finish sets

GBP  550.00
Complete set for standard installation - 600 for shower drains finish sets

uBox universal Complete set for standard installation - 600 for shower drains finish sets

GBP  505.00
Complete set for standard installation - 700 for shower drains finish sets

uBox universal Complete set for standard installation - 700 for shower drains finish sets

GBP  505.00
Complete set for standard installation - 800 for shower drains finish sets

uBox universal Complete set for standard installation - 800 for shower drains finish sets

GBP  515.00

Article features

  • consists of: basic set, trap, pre-assembled sealing membrane, screed protection cover
  • suitable for RainDrain Match, Flex, Rock and Original finish sets
  • where to use: new construction, renovation
  • water seal height: 50 mm
  • minimum construction height: 75 mm
  • drainage capacity with siphon: up to 42 l/min
  • drainage capacity with Dryphon: up to 60 l/min
  • connection diameter: DN50
  • direction of outlet: vertical
  • connection: 1-sided
  • mounting type: wall-mounted, free in the floor
  • easy to clean siphon
  • removable siphon
  • third party controlled acc. DIN EN 1253-3

Download area

Product data sheet (PDF)

Planning data

BIM data

Technical data

Instructions

Installation information

Installation guide
Installation guide

Download the guide and get going

Download Guide
Installation video
Installation video

Watch and learn how it's done

Watch video
Find retail showroom
Find retail showroom

Buy the product in store

Go to Shopfinder
Spare part finder

Do you need spare parts for our products?

Buy spare parts here

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Optional accessories

Fire protection adapter (HT PP socket DN 50)

 Fire protection adapter (HT PP socket DN 50)

GBP  228.00

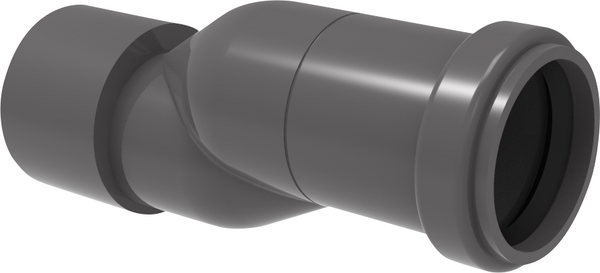

Adapter UK (50 to 56 mm)

 Adapter UK (50 to 56 mm)

GBP  44.00
Wall mounting set

 Wall mounting set

GBP  66.00
